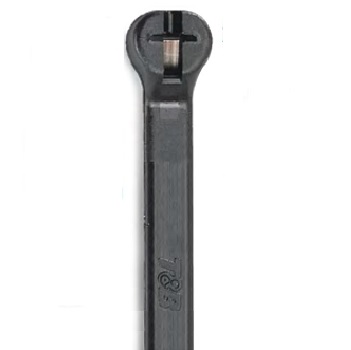

TY23MX ABB通貝耐候型尼龍線纜扎帶 2.3×92mm
Catalog No. : TY23MX
Description: CABLE TIE 18LB 3.62PO UV BLACK NYLO
UPC: 786210824468
Cable Tie, Black Polyamide (Nylon 6.6) for Temperatures up to 105 Degrees Celsius (221 F), Weather and Ultraviolet Resistant for Indoor and Outdoor Applications, , Length of92mm (3.6 Inches), Width of 2.3mm (0.09 Inch), Tensile Strength Rating of 80 Newtons (18 Pounds)
-
Low profile head is designed to prevent snags on uneven surfaces and easier to pull through bulkheads. Non-magnetic stainless steel locking device insures both maximum strength and the right tightness every time.
-
Because there are no notches, Ty-Rap ties provide an infinite number of locking positions while fastening the tie at the precise bundle diameter needed.
-
The No-Slip Tail provides easy grip during tensioning. Ty-Rap ties feature a unique friction surface designed to reduce slippage during installation.
-
Smooth, notchless body reduces stress concentration points under tension, making the tie stronger and lower profile than notched body ties. Ribbed and Stippled body grips the bundle and prevents slippage. Rounded edges protect insulation, preventing sharp edges from damaging cables.
-
Application Tools: ERG50, WT1-TB
Descriptors
|
Category
|
Cable ties
|
|
Special Features
|
Low profile head is designed to prevent snags on uneven surfaces and easier to pull through bulkheads. Non-magnetic stainless steel locking device insures both maximum strength and the right tightness every time.
|
Specifications
|
Material
|
Nylon/Polyamide 6.6
|
|
Color
|
Black
|
|
Lock Mechanism
|
Stainless Steel Barb
|
|
Tensile Strength
|
18 pounds , 80 newtons
|
Classifications
|
Brand Name
|
Ty-Rap
|
|
Standard
|
UL E49405
UL E49405
|
Dimensions
|
Width
|
0.09 in , 2.3 mm
|
|
Length
|
3.6 in , 92 mm
|
|
Thickness
|
0.04 in , 1 mm
|
|
Bundle Diameter
|
0.06 to 0.63 in , 1.5 to 16 mm
|
TY23M耐候尼龍線纜扎帶
|
